Low Pass Filter

From DC to 960MHz

Brand :ENRICHTEK

P/N :ELP-E96

MOQ :1

REQUEST QUOTE

Low pass filter is a kind of RF filter that passes all frequencies below design and rejects signals higher than the cutoff frequency.

The operating frequency of this suspended stripline low pass filter ELP-E96 from ENRICHTEK is from DC to 960 MHz. The maximum handing power is 10 Watt(CW).The rejection at 1400MHz-4000MHz is larger than 70dB.With a 50 Ohm impedance, the maximum VSWR of this low pass filter ELP-E96 is 1.5.

Low pass filters from ENRICHTEK are available in education, industrial, aviation and military uses because of the wide operating temperature, high stability and high consistency.

Electrical Specifications

Parameters	Typical Value
Pass Band Frequency	DC～960MHz
Insertion Loss	≤1.0dB
VSWR	≤1.5:1
Rejection	≥70dB @ 1400～4000MHz
Power Handling	10W
Surface Finish	Guide Oxygen or Black Paint
Net Weight	0.13 KG

Mechanical Specifications

Dimensions	1204110mm
Connectors	SMA-Female

Environmental Specifications

Operating Temperature	-55 to +85ºC
Storage Temperature	-55 to +95 ºC

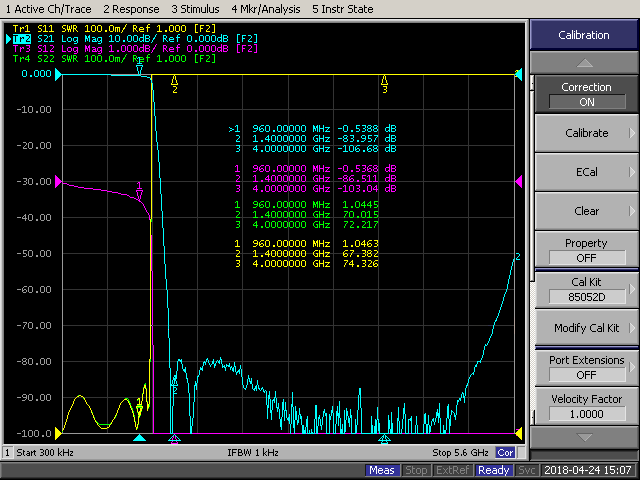

Typical Performance

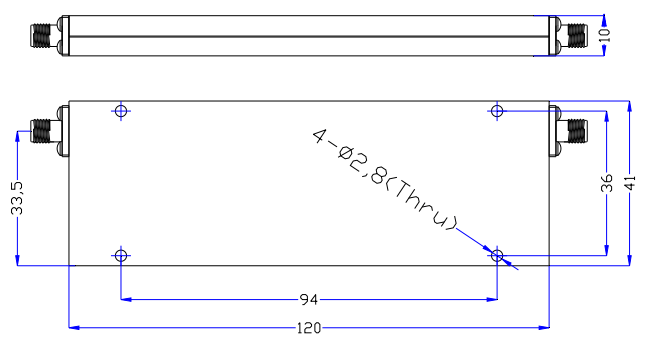

Outline Drawing (unit: mm)
