Low Pass Filter

from DC to 8.5GHz

Brand :ENRICHTEK

P/N :ELP-8E5

MOQ :1

REQUEST QUOTE

Low pass filter is a kind of RF filter that passes all frequencies below design and rejects signals higher than the cutoff frequency.

The operating frequency of this suspended stripline low pass filter ELP-8E5 from ENRICHTEK is from DC to 8.5GHz. The maximum handing power is 15Watt(CW).The rejection is larger than 50dB at 9.3～17GHzWith a 50 Ohm impedance, the maximum VSWR of this low pass filter ELP-8E5 is 1.4.

Low pass filters from ENRICHTEK are available in education, industrial, aviation and military uses because of the wide operating temperature, high stability and high consistency.

Electrical Specifications

Parameters	Typical Value
Cut Off Frequency	8.5GHz
Pass Band Frequency	DC～8.5GHz
Pass Band Insertion Loss	≤1.0dB @ DC～8.4GHz ≤1.5dB @ 8.4～8.5GHz
Pass Band VSWR	≤1.4:1
Stop Band Attenuation	≥50dB @ 9.3～17GHz
Impedance	50 ohms
Power	≤15W

Mechanical Specifications

Dimensions	292110mm
Connectors	SMA-Female
Surface Finish	Guided Oxygen or Black Paint
Net weight	0.02 KG

Environmental Specifications

Operating Temperature	-55ºC～+85ºC
Storage Temperature	-55ºC～ +95ºC

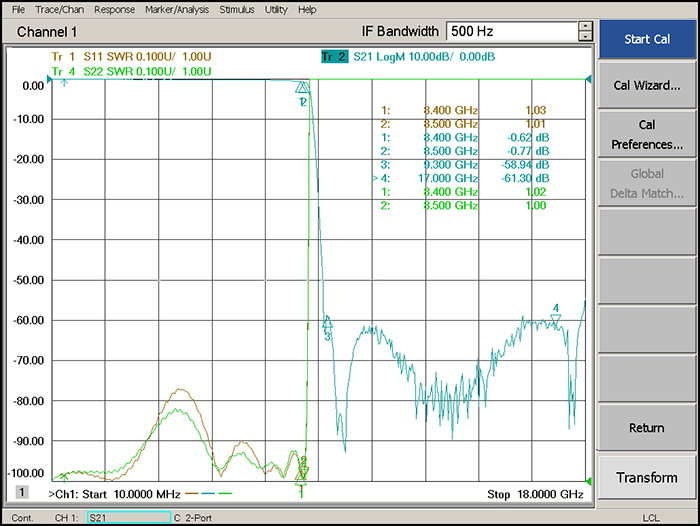

Typical Performance

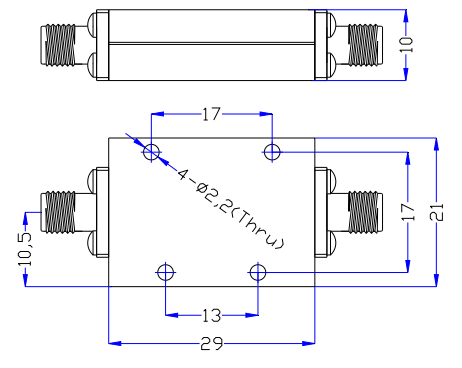

Outline Drawing (unit: mm)

DC~8.5GHz Low Pass Filter9.png
