Low Pass Filter

From DC to 1.4GHz

Brand :ENRICHTEK

P/N :ELP-1E4

MOQ :1

REQUEST QUOTE

Low pass filter is a kind of RF filter that passes all frequencies below design and rejects signals higher than the cutoff frequency.
The operating frequency of this LC low pass filter ELP-1E4 from ENRICHTEK is from DC to 1400 MHz. The passband ripple is less than 2.5dB . The rejection at 1600-2000MHz is larger than 35dB.With a 50 Ohm impedance, the maximum VSWR of this low pass filter ELP-1E4 is 1.6.

Low pass filters from ENRICHTEK are available in education, industrial, aviation and military uses because of the wide operating temperature, high stability and high consistency.

Electrical Specifications

Parameters	Typical Value
Frequency Range	DC～1.4GHz
Insertion Loss	≤2.5dB
VSWR	≤1.6:1
Stop Band Rejection	≥35dB @ 1600～2000MHz
Power	≤1W
Surface Finish	The Original Silver Color

Mechanical Specifications

Dimensions	401210mm
Connectors	SMA-Female

Environmental Specifications

Operating Temperature	-55 to +85ºC
Storage Temperature	-55 to +95 ºC

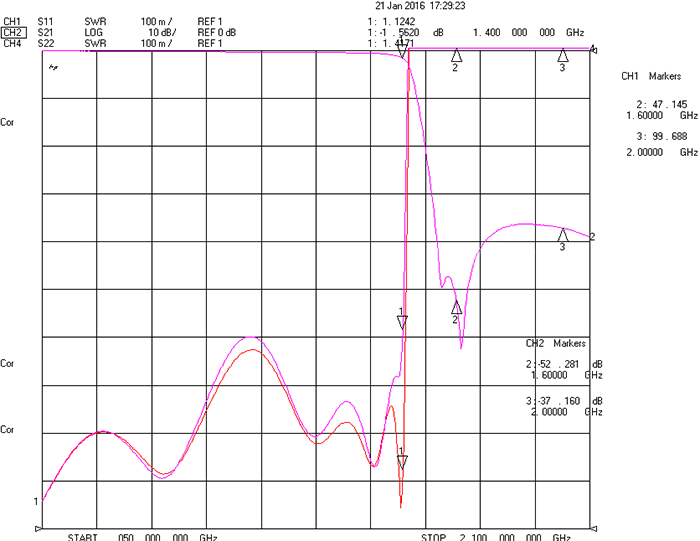

Typical Performance

DC-1400MHz LC Low Pass Filter2.png

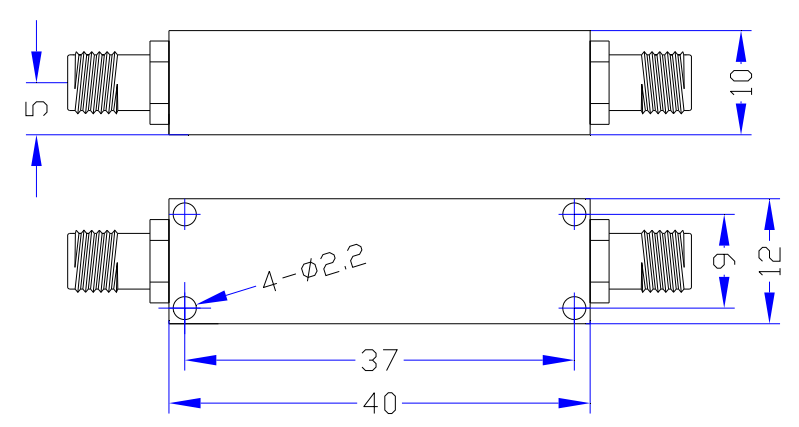

Outline Drawing (unit: mm)
