Low Pass Filter

From DC to 2.7GHz

Brand :ENRICHTEK

P/N :ELP-2E7

MOQ :1

REQUEST QUOTE

Low pass filter is a kind of RF filter that passes all frequencies below design and rejects signals higher than the cutoff frequency.

The operating frequency of this LC low pass filter ELP-2E7 from ENRICHTEK is from DC to 2700 MHz. The passband ripple is less than 1.0dB . The rejection at 3450-8000MHz is larger than 45dB.With a 50 Ohm impedance, the maximum VSWR of this low pass filter ELP-2E7 is 1.5.

Low pass filters from ENRICHTEK are available in education, industrial, aviation and military uses because of the wide operating temperature, high stability and high consistency.

Electrical Specifications

Parameters	Typical Value
3dB Cut Off	3 GHz
1dB Pass Band	DC～2.7 GHz
VSWR	≤1.5:1
Stop Band	≥45dB @ 3.45～8 GHz
Average Power	15W
Surface Finish	Guide Oxygen or Black Paint
Net Weight	0.04 KG

Mechanical Specifications

Dimensions	413410mm
Connectors	SMA-Female

Environmental Specifications

Operating Temperature	-55 to +85ºC
Storage Temperature	-55 to +95 ºC

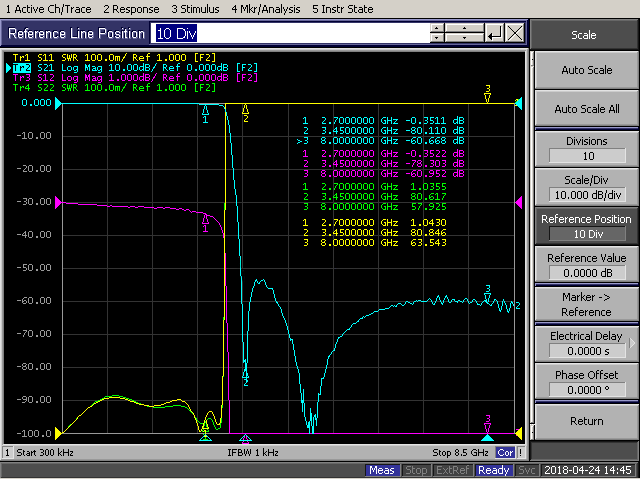

Typical Performance

DC-2.7GHz Suspended Stripline Low Pass Filter2.png

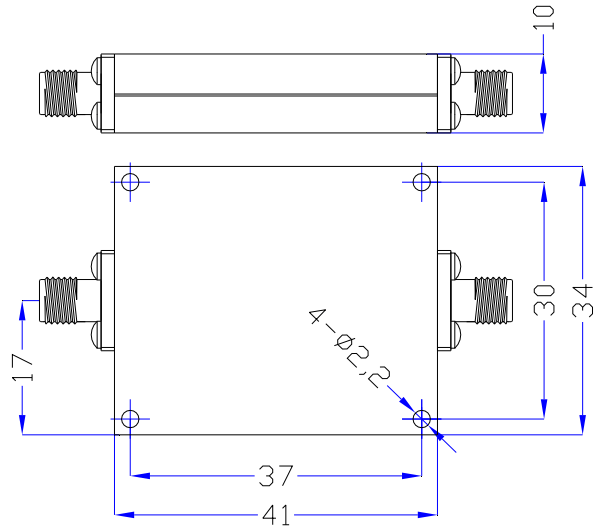

Outline Drawing (unit: mm)

DC~2.7GHz Low Pass Filter9.png
