Diskcone Antenna

Brand :ENRICHTEK

P/N :ATBDDC series

MOQ :1

Diskcone antenna is a vertically polarized omnidirectional antenna with extremely wide working frequency range and stable pattern. It has omnidirectional radiation/reception characteristics on the azimuth plane.

The typical gain value of our ATBDDC series diskcone antenna is 0dBi, the typical VSWR is 2.5: 1, and the key frequency range is less than 2: 1. ATBDDC series antennas can be used for both transmission and reception, and the bandwidth can exceed 1:10. They are widely used in broadband fields, such as electromagnetic monitoring.

In addition to excellent electrical performance, ATBDDC series antennas have the characteristics of firm structure, light weight, convenient installation. They can work well on the ground, vehicles and aircrafts.

Typical Pattern(ATBDC50300 )

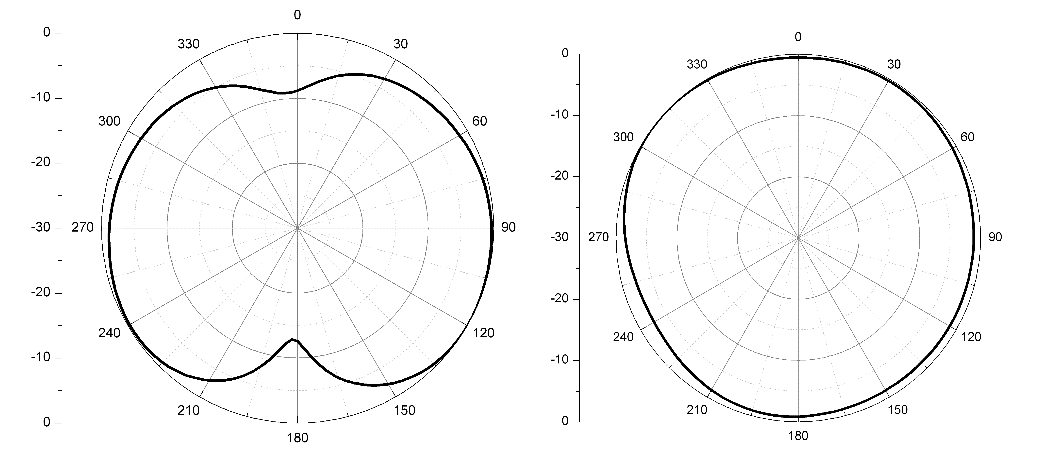

500MHz(E/H)

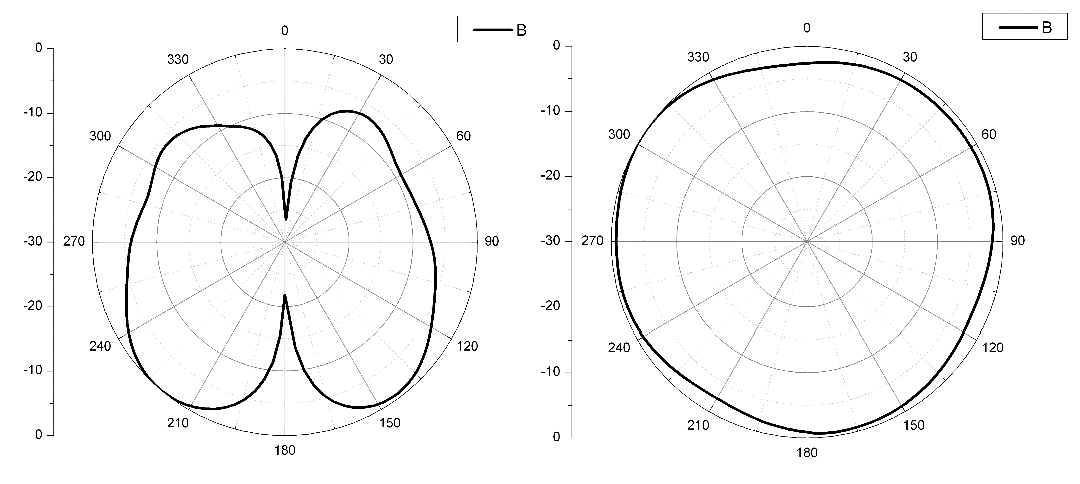

1700MHz(E/H)

Diskcone Antenna Product List

Note: antenna is customizable according to user requirements

P/N	Freq. (GHz)	VSWR (Typ.)	Gain (dBi)	Power (CW)	Connector	Dimension (mm)
ATBDDC450	0.04~0.5	2:1	0	300W	N	Ф2050×1800
ATBDDC650	0.06~0.5	2:1	0	300W	N	Ф1500×1000
ATBDDC7100	0.07~1.0	2.5:1	0	300W	N	Ф1180×920
ATBDDC850	0.08~0.5	2.5:1	0	300W	N	Ф1180×920
ATBDDC1040	0.1~0.4	2.0:1	0	300W	N	Ф1180×920
ATBDDC2040	0.2~0.4	2.0:1	0	300W	N	Ф600×470
ATBDDC25100	0.25~1.0	2.5:1	0	300W	N	Ф476×425
ATBDDC50300	0.5~3.0	2.5:1	0	200W	N	Ф250×200
ATBDDC80200	0.8~2.0	2.5:1	0	200W	N	Ф155×140
ATBDDC100300	1~3	2.5:1	0	100W	SMA	Ф180×120
ATBDDC100800	1~8	2.0:1	0	100W	SMA	Ф110×120
ATBDDC1001200	1~12	2.0:1	0	100W	SMA	Ф110×120
ATBDDC1001800	1~18	2.5:1	0	100W	SMA	Ф110×80
ATBDDC3001500	3~15	2.5:1	0	50W	SMA	Ф65×42
ATBDDC8001800	8~18	2.0:1	0	50W	SMA	Ф45×60
ATBDDC14002650	14~26.5	2.5:1	0	50W	SMA	Ф65×22
