Standard Gain Horn Antenna

Brand :ENRICHTEK

P/N     :ATH Series

MOQ  :1

REQUEST QUOTE
The ATH series standard gain horn antennas from ENRICHTEK are widely used as standard antennas for antenna gain measurement, auxiliary transmitting antennas for antenna measurement, receiving antennas for antenna detection, transmitting or receiving antennas for jammers and other electronic equipment.
Our standard gain horn antennas have the characteristics of stable performance, accurate calibration, high linear polarization purity. The frequency ranges from 0.32GHz to 40GHz, with a gain value of 10dBi to 25dBi, which can be customized according to user requirements.

The low frequency antenna is welded with aluminum, which is firm and reliable. The high frequency antenna is precision machining and molding, and the process technology is mature, which has been widely used.

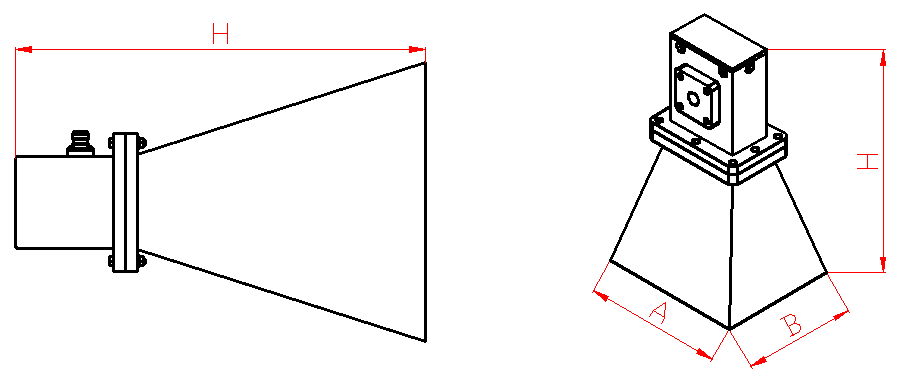

Structural Diagram

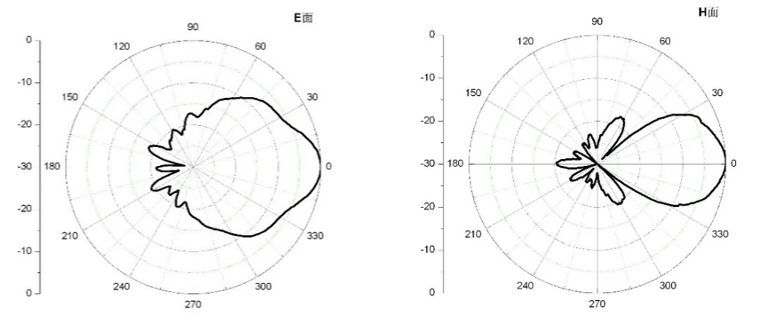

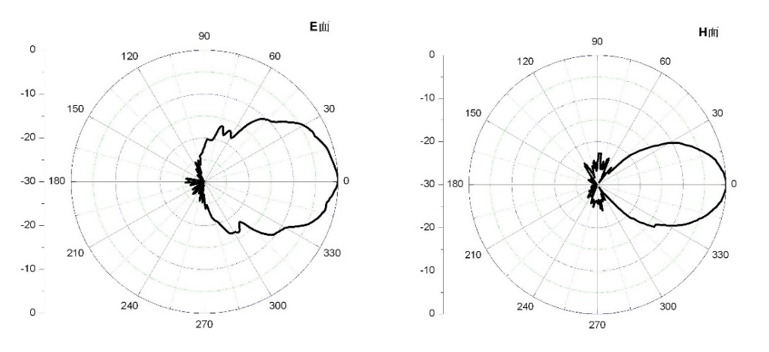

Typical Pattern (Model ATH-159-15)

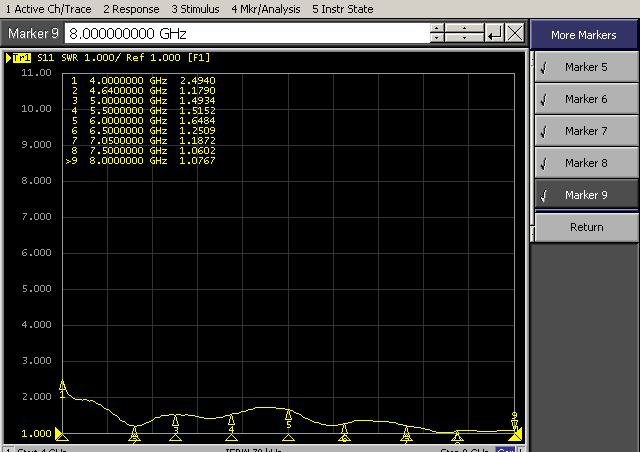

Typical  VSWR

Typical Voltage VSWR.png

Standard Gain Horn Antenna Product List

Note: antenna is customizable according to user requirements


Model

Freq.

(GHz)

Input

Waveguide

Gain

(dBi)

Connector

Dimensions

A*B*H(mm)

ATH-2300-10

0.32～0.49

WR2300/BJ-3

10

N

1200×1000×2000

ATH-2100-10

0.35～0.53

WR2100/BJ-4

10

N

1050×750×1800

ATH-1800-10

0.41～0.62

WR1800/BJ-5

10

N

900×650×1650

ATH-1500-10

0.49～0.75

WR1500/BJ-6

10

N

760×560×1400

ATH-1150-10

0.64～0.98

WR1150/BJ-8

10

N

600×440×1450

ATH-975-10

0.76～1.15

WR975/BJ-9

10

N

500×360×1230

ATH-770-10

0.96～1.46

WR770/BJ-12

10

N

404×284×548

ATH-770-15

0.96～1.46

WR770/BJ-12

15

N

610×460×780

ATH-650-10

1.13～1.73

WR650/BJ-14

10

N

304×279×410

ATH-650-15

1.13～1.73

WR650/BJ-14

15

N

567×423×650

ATH-510-10

1.45～2.2

WR510/BJ-18

10

N

264×184×358

ATH-510-15

1.45～2.2

WR510/BJ-18

15

N

440×325×530

ATH-430-13.5

1.72～2.61

WR430/BJ-22

13.5

N

313×232×420

ATH-430-15

1.72～2.61

WR430/BJ-22

15

N

385×290×450

ATH-340-10

2.17～3.3

WR340/BJ-26

10

N

184×124×248

ATH-340-12

2.17～3.3

WR340/BJ-26

12

N

207×146×260

ATH-340-15

2.17～3.3

WR340/BJ-26

15

N

310×240×390

ATH-284-10

2.6～3.95

WR284/BJ-32

10

N

120×100×260

ATH-284-15

2.6～3.95

WR284/BJ-32

15

N

220×170×360

ATH-284-20

2.6～3.95

WR284/BJ-32

20

N

390×285×660

ATH-229-10

3.22～4.9

WR229/BJ-40

10

N

124×84×168

ATH-229-15

3.22～4.9

WR229/BJ-40

15

N

210×150×320

ATH-229-20

3.22～4.9

WR229/BJ-40

20

N

350×260×520

ATH-187-10

3.94～5.99

WR187/BJ-48

10

N

100×75×200

ATH-187-15

3.94～5.99

WR187/BJ-48

15

N

170×120×260

ATH-187-20

3.94～5.99

WR187/BJ-48

20

N

285×220×440

ATH-159-10

4.64～7.05

WR159/BJ-58

10

N

84×69×138

ATH-159-15

4.64～7.05

WR159/BJ-58

15

N

138×103×150

ATH-159-20

4.64～7.05

WR159/BJ-58

20

N

225×173×325

ATH-137-10

5.38～8.17

WR137/BJ-70

10

N

67×52×158

ATH-137-15

5.38～8.17

WR137/BJ-70

15

N

143×113×218

ATH-137-20

5.38～8.17

WR137/BJ-70

20

N

205×160×330

ATH-112-10

6.57～9.99

WR112/BJ-84

10

N

57×42×130

ATH-112-15

6.57～9.99

WR112/BJ-84

15

N

102×71×180

ATH-112-20

6.57～9.99

WR112/BJ-84

20

N

172×128×275

ATH-90-10

8.2～12.5

WR90/BJ-100

10

N/SMA

47×41×113

ATH-90-15

8.2～12.5

WR90/BJ-100

15

N/SMA

84×60×143

ATH-90-20

8.2～12.5

WR90/BJ-100

20

N/SMA

138×107×238

ATH-90-22

8.2～12.5

WR90/BJ-100

22

N/SMA

195×145×240

ATH-90-25

8.2～12.5

WR90/BJ-100

25

N/SMA

310×240×695

ATH-75-10

9.84～15

WR75/BJ-120

10

N/SMA

43×33×95

ATH-75-15

9.84～15

WR75/BJ-120

15

N/SMA

68×48×120

ATH-75-20

9.84～15

WR75/BJ-120

20

N/SMA

108×83×190

ATH-75-25

9.84～15

WR75/BJ-120

25

N/SMA

185×155×430

ATH-62-10

11.9～18.0

WR62/BJ-140

10

N/SMA

37×27×87

ATH-62-15

11.9～18.0

WR62/BJ-140

15

N/SMA

50×35×87

ATH-62-22

11.9～18.0

WR62/BJ-140

22

N/SMA

130×96×319

ATH-62-25

11.9～18.0

WR62/BJ-140

25

N/SMA

167×130×375

ATH-51-10

14.5～22

WR51/BJ-180

10

SMA

32×22×74

ATH-51-15

14.5～22

WR51/BJ-180

15

SMA

44×34×87

ATH-51-20

14.5～22

WR51/BJ-180

20

SMA

77×60×137

ATH-51-25

14.5～22

WR51/BJ-180

25

SMA

130×100×327

ATH-42-10

17.6～26.7

WR42/BJ-220

10

3.5/K

25×18×69

ATH-42-14

17.6～26.7

WR42/BJ-220

14

3.5/K

31×22×70

ATH-42-20

17.6～26.7

WR42/BJ-220

20

3.5/K

63.5×49.5×117

ATH-42-25

17.6～26.7

WR42/BJ-220

25

3.5/K

117×90×270

ATH-34-10

21.7～33

WR34/BJ-260

10

3.5/K

22×17×64

ATH-34-13

21.7～33

WR34/BJ-260

13

3.5/K

25×19×55

ATH-34-20

21.7～33

WR34/BJ-260

20

3.5/K

54×42×120

ATH-34-25

21.7～33

WR34/BJ-260

25

3.5/K

92×72×245

ATH-28-10

26.3～40.0

WR28/BJ-320

10

3.5/K

17×15×60

ATH-28-14

26.3～40.0

WR28/BJ-320

15

3.5/K

23×17×55

ATH-28-20

26.3～40.0

WR28/BJ-320

20

3.5/K

40.5×32×95

ATH-28-25

26.3～40.0

WR28/BJ-320

25

3.5/K

80×65×200
