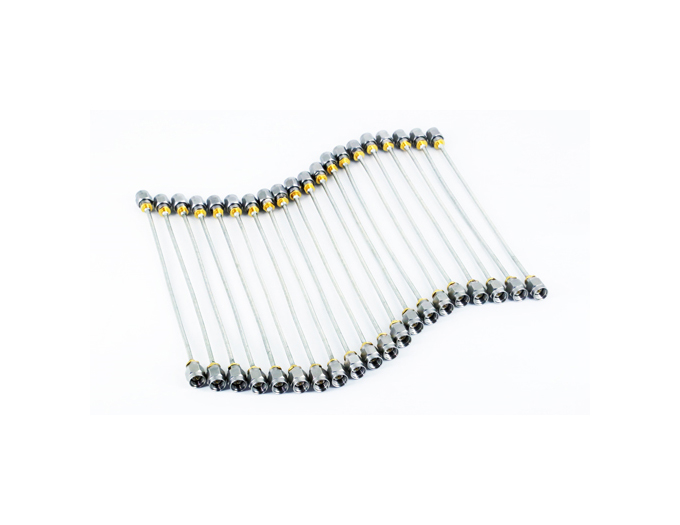

ESF Semi-Flexible RF Cable

Brand :ENRICHTEK

P/N :ESF Series

MOQ :1

ESF series semi-flexible cable assemblies can be hand formed in-place. The cable assemblies are used for high reliable cabinet interconnects. ESF series is convenient and efficient. Phase matching is available upon request.

The length and connectors of the ESF series RF cable assemblies are customizable.

Cable Construction
Center Conductor	Ag-plated Cu
Dielectric	PTFE
Outer Conductor	Tin Soaked Copper Braid

Selection Matrix

Cable Type		Semi-flexible Cable
Cable Outer Dia.(mm)		1.2	2.2	3.6
Minimum Bend Radius（mm）		6	8	12
Connectors	SMP (GPO)		★
	SMPM (mini-SMP / GPPO)		★
	SMA	★	★	★
	N			★
	2.92mm		★
	2.4mm		★
	1.85mm		★
