6~18GHz 6dB

Directional Coupler

Brand :ENRICHTEK

P/N :DC6-6E-18E

MOQ :1

REQUEST QUOTE

RF directional couplers, also called RF couplers, provide simple means of monitoring or sampling RF energy.

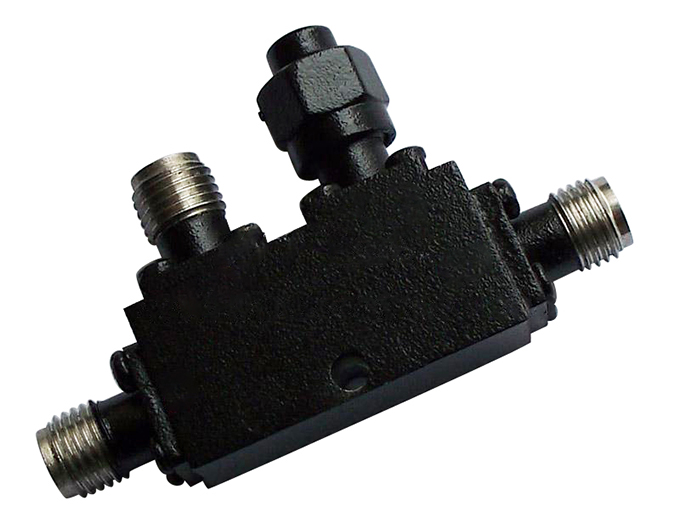

This microstrip directional coupler DC6-6E-18E from ENRICHTEK operates from 6GHz to 18GHz with SMA female connectors. The RF directional coupler DC6-6E-18E has a coupled value of 6dB, the insertion loss is less than 2.2dB, and the directivity is larger than 10dB.With excellent performance, this microstrip directional coupler DC6-6E-18E can be used in military, commerce and education.

Directional couplers from ENRICHTEK is customizable, such as changing the frequency, mechanical structure and electrical parameters.

Electrical Specifications

Parameters	Typical Value
Coupling	6±1.0dB
Frequency Range	6～18GHz
Insertion Loss	≤2.2dB
VSWR	≤1.6:1
Directivity	≥10dB
Power Handling	≤5W
Impedance	50 Ohms

Mechanical Specifications

Dimensions	25.412.79.65mm
Connectors	SMA-Female
Surface Finish	Black Paint

Environmental Specifications

Operating Temperature	-40 to +70ºC
Storage Temperature	-55 to +85 ºC

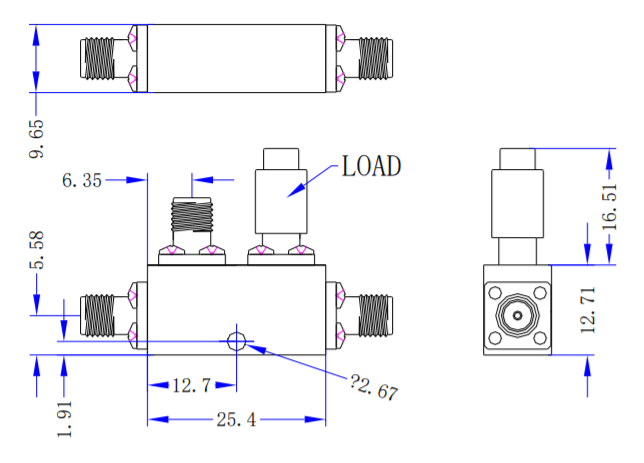

Outline Drawing (unit: mm)

6~18GHz 6dB Directional Coupler9.png
